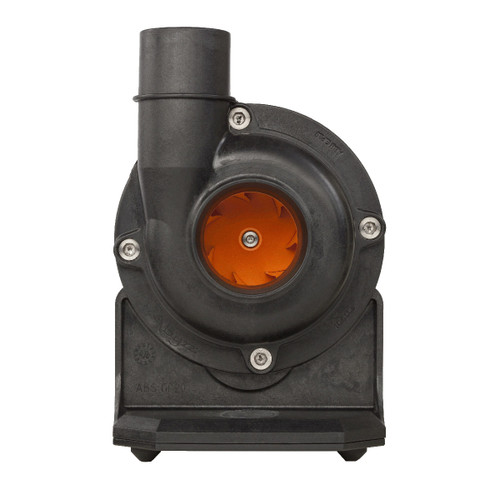

The innovative Abyzz A400 pump with titanium rotor consists of a programmable, high-performance, menu-driven electronics (driver) and a sinusoidal-commutated synchronous motor (pump).
The high efficiency of the motor makes the pump, in conjunction with the adjustable to your power requirements speed, an energy-saving solution. The integrated bearing rinse offers optimum protection against calcification and, in conjunction with the silicon carbide bearings used and a special carbide shaft, ensures low-maintenance operation.
The processed materials are designed for a long service life and meet the highest requirements and quality standards. The product is developed and produced in Germany by venotec.
Special features
- Adjustable speed range (0 … 100%)
- Programmable control (eg wave and random mode)
- Extensive protection against e.g. dry running, overtemperature and overcurrent
- Smooth start
- Bus-compatible interface for peripheral devices
- Lockable plug contacts
- Low noise operation
Applications
- Freshwater and saltwater aquaristics
- Pond filter systems
- streams
Delivery
- Abyzz A400 pump and driver
- Power cable (1.5 m) and connecting cable
- Operating instructions
Installation either submerged or dry in piping, not self-priming.
The inlet / outlet connections are suitable for PVC / ABS adhesive fittings.
Additional information
Weight 5 kg
Dimensions 420 × 290 × 134 mm
Maximum flow rate 23.500 l/h
Rated flow rate 18.600 l/h
Delivery height 12,5 m
Outflow speed maximal 7,5 m/s
Outflow speed nominal 6,4 m/s
Operating pressure (max.) 1,2 bar
Immersion depth (max.) 2,0 m
Inlet/outlet connections 50 mm / 40 mm
Line length (pump) 10,0 m, 3,0 m
Power consumption 4 … 400W
Operating voltage 230 V~, 50…60 Hz
Ambient temperature +2C … +40C
Line length 3,0 m
